Solutions for Automated Microplasma- and Plasma Welding

  • Contact us
  • 380
  • Automated welding of longitudinal, circumferential and special weld seams
  • Use in automatic and robot welding systems
  • Plasma spot welding
  • Use in fully automated factories
  • Automated short-term welding e.g. in lamp and glow plug production

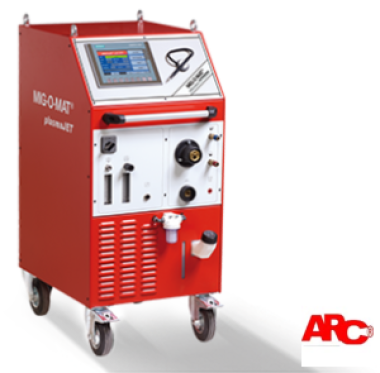

The MIG·O·MAT plasmaJET 100SPS is specially designed for automatic and robot welding systems. Equipped with a modular based Siemens SPC control device the plasmaJET unit offer an easy operation and a high degree of process safety and flexibility, so that huge number of special customer requirements and adaptions can be realized. The integrated high-performance cooling system with monitoring of the coolant flow-rate is designed for the high demands of the plasma welding process and in particular the plasma welding torch.
The MIG·O·MAT plasmaJET 100SPS is especially designed to meet the high demands of the microplasma welding process, where even lowest welding current, a precise adjustability and regulation and an excellent reaction of the plasma-arc are of vital importance.

The universell designed welding program flow provides a huge number of adaptions on different welding applica-tions by the modes of operation e.g. 2-cycle/4-cycle, timing control, plasma spot welding and control voltage*.

The operation is made by a robust touchdisplay with graphic indication of welding flow and is very easy in handling.

For a simple handling, the display can be demounted from the welding unit and it can be integrated into the customers control desk*.

  • Microplasma welding from 0,5 A
  • Integrated high-perfomance cooling by circulating coolant
  • Excellent reaction of pilot arc due to inverter technology
  • Monitoring of the coolant flow-rate for protection of the plasma welding torch
  • Built-in flowmeter for the precise setting of plasma and shielding gas
  • Modes of operation 2-cycle / 4-cycle / timing control / plasma spot welding / control voltage*
  • Storage of all welding parameters in 60 welding programs
  • Test sequence for the welding program
  • Indication of fault messages in plain text
  • Graphic indication of welding flow
  • Pulsed-mode operation with varable frequency width and basic current up to 100 Hz
  • Modular control system (Siemens S7-200) with softwarebased program control
  • Simple controling by touchpanel
  • Software-based adjustment to any welding task
  • Control receptacle according to industrial standard
  • Mobile, swivel rollers with brake
  • Central connection for the welding torch
  • Language German and English (switchable)
Technical data plasmaJET 100SPS
Mains voltage 1 × 230 V 50/60 Hz
Mains fuse 16 A träge
Welding current 0,5 to 100 A
Duty cycle 100 A / 100 %
Pilot current 3 to 15 A
No-load voltage 85 V
Dimensions W x H x D 455 × 980 × 620 mm
Weight 85 kg
Color RAL2002
